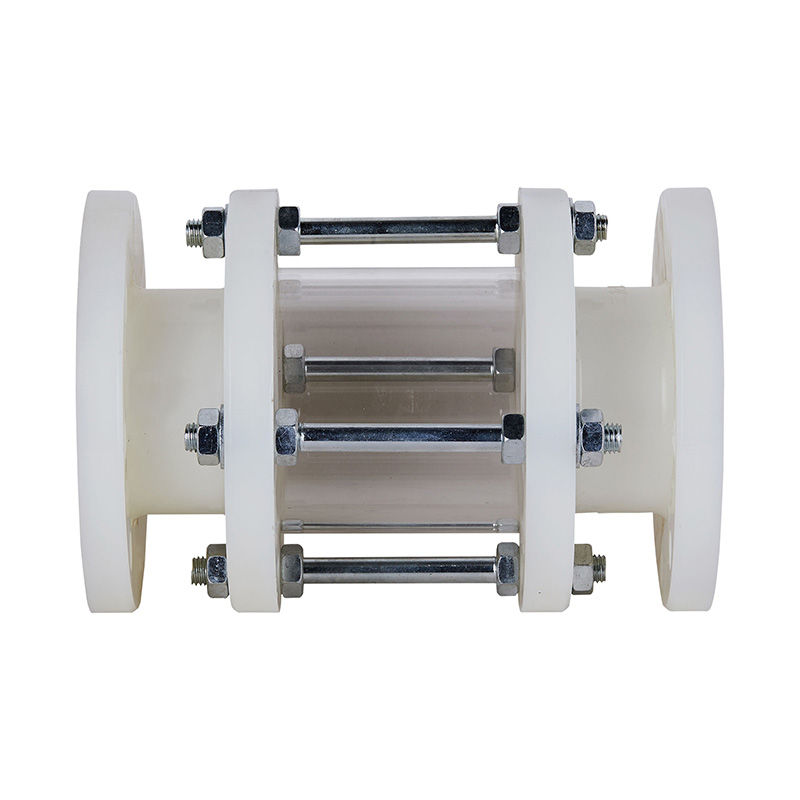

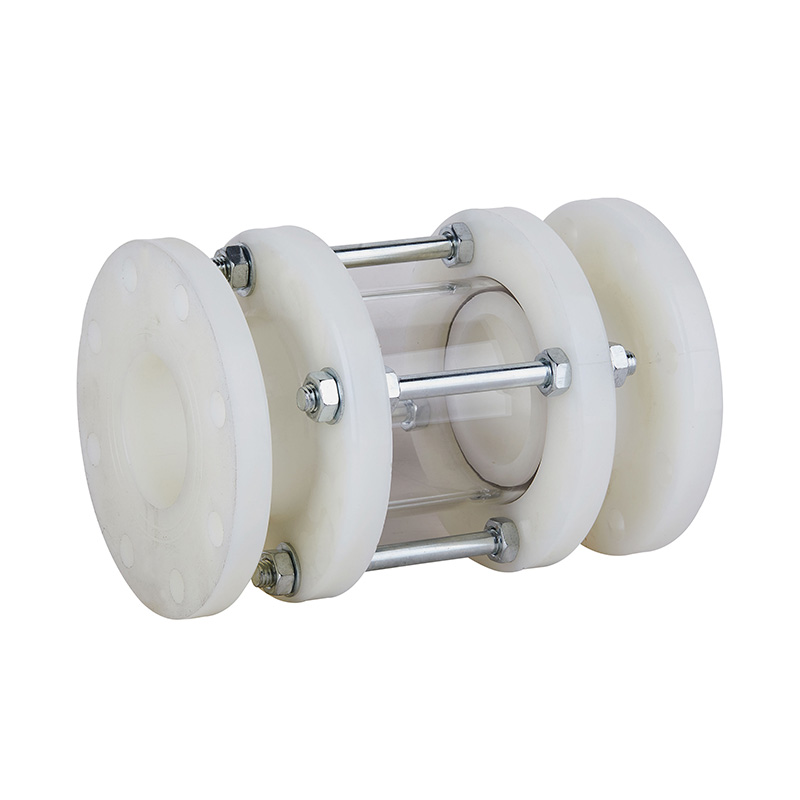

PVDFネジ式サイトグラス
白色耐熱 PVDF サイトグラス高温耐性プラスチックネジ式液体レベルサイトグラスインジケーター
出身地:寧波、浙江省
ブランド名: KXPV
製品名:サイトグラス
サイズ: DN15-200
納期: 7日
MOQ: 1 個
供給能力:10000個/月あたり
材質:PVDF
色: ホワイト
クラス圧力:1.0Mpa(10bar)
PVDFネジ式サイトグラス
白色耐熱 PVDF サイトグラス高温耐性プラスチックネジ式液体レベルサイトグラスインジケーター
出身地:寧波、浙江省
ブランド名: KXPV
製品名:サイトグラス
サイズ: DN15-200
納期: 7日
MOQ: 1 個
供給能力:10000個/月あたり
材質:PVDF
色: ホワイト
クラス圧力:1.0Mpa(10bar)
| アプリの温度制限リスト |
| 材質 | 中温℃ | 材質 | 中温℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVC-C | -20℃~95℃ | PVC-U | -5℃~45℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FRPP | -20℃~120℃ | PPH | -20℃~110℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVDF | 40℃~150℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| 製品の構造上の特徴 |
1. コンパクトで美しい外観
2.軽量で設置が簡単
3.耐摩耗性があり、分解が容易でメンテナンスが簡単です。
4. ホウケイ酸ガラス製で耐食性に優れ、幅広い用途に適しています。
5. 最も限られた作業環境に適しており、長寿命を誇ります。
| 部品材質表 |
サイトグラス組立詳細図
| いいえ。 | 名前 | 材質 |
| 1 | ベース | FRPP、PVDF、PVC-C、PVC-U、PPH |
| 2 | 六角ナット | スチール |
| 3 | 両頭スタッド | スチール |
| 4 | ガラス | ガラス |
| 5 | ワッシャー | EPDM、FPM |
| 6 | ベース | FRPP、PVDF、PVC-C、PVC-U、PPH |
| 寸法リスト |
| DN(mm) | D | d | L | b | n-Φ | ||||||||||||||||||||||||||||||||||||||||||||||||||
| GB | JIS | ANSI | GB | JIS | ANSI | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 25(1/2") | 115 | 85 | 90 | 79.4 | 240 | 14 | 4-Φ14 | 4-Φ19 | 4-Φ16 | ||||||||||||||||||||||||||||||||||||||||||||||
| 32(11/4インチ) | 150 | 100 | 100 | 232 | 16 | 4-Φ18 | 4-Φ19 | ||||||||||||||||||||||||||||||||||||||||||||||||
| 40(11/2インチ) | 150 | 110 | 105 | 98.4 | 232 | 16 | 4-Φ18 | 4-Φ19 | 4-Φ16 | ||||||||||||||||||||||||||||||||||||||||||||||
| 50(2インチ) | 165 | 125 | 120 | 120.7 | 233 | 16 | 4-Φ18 | 4-19 | 4-Φ18 | ||||||||||||||||||||||||||||||||||||||||||||||
| 65(21/2インチ) | 195 | 145 | 140 | 139.7 | 278 | 19 | 4-Φ18 | 4-19 | 4-Φ18 | ||||||||||||||||||||||||||||||||||||||||||||||
| 80(3インチ) | 195 | 160 | 150 | 152.4 | 278 | 20 | 8-Φ18 | 8-Φ19 | 4-Φ18 | ||||||||||||||||||||||||||||||||||||||||||||||
| 100(4インチ) | 220 | 180 | 175 | 190.5 | 310 | 21 | 8-Φ18 | 8-Φ19 | 8-Φ18 | ||||||||||||||||||||||||||||||||||||||||||||||
| 125(5インチ) | 250 | 210 | 210 | 215.9 | 350 | 26 | 8-Φ18 | 8-Φ23 | 8-Φ22 | ||||||||||||||||||||||||||||||||||||||||||||||
| 150(6インチ) | 285 | 240 | 240 | 241.3 | 385 | 26 | 8-Φ22 | 8-Φ23 | 8-Φ22 | ||||||||||||||||||||||||||||||||||||||||||||||
| 200(8インチ) | 340 | 295 | 298.5 | 400 | 30 | 8-Φ22 | 8-Φ22 | ||||||||||||||||||||||||||||||||||||||||||||||||
| 250(10インチ) | 406 | 350 | 355 | 362 | 400 | 30 | 12-Φ22 | 12-Φ25 | 12-Φ26 | ||||||||||||||||||||||||||||||||||||||||||||||
| 300(12インチ) | 475 | 400 | 431.8 | 440 | 32 | 12-Φ22 | 12-Φ26 | ||||||||||||||||||||||||||||||||||||||||||||||||
