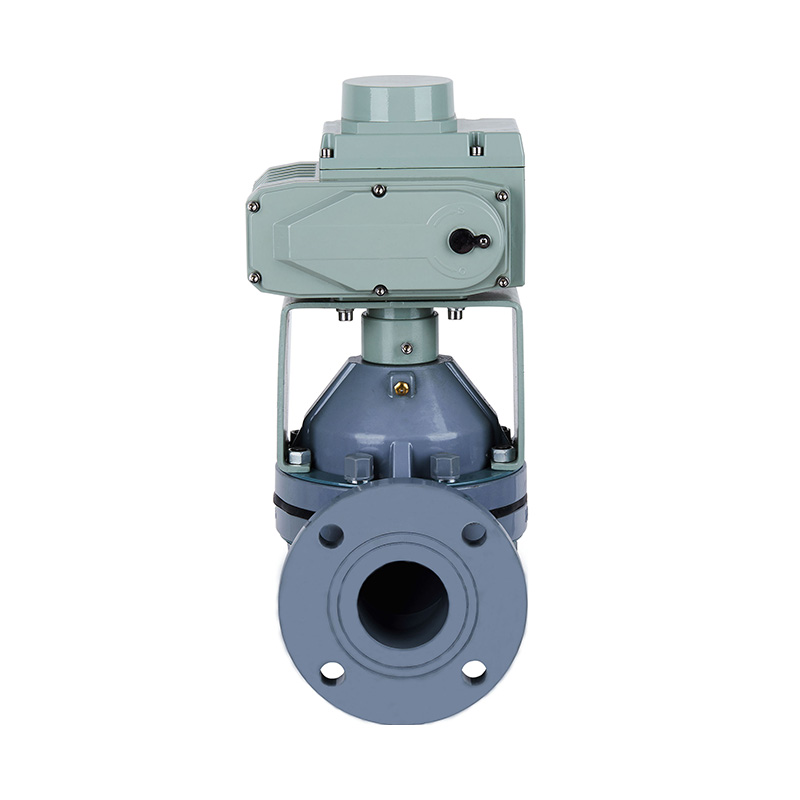

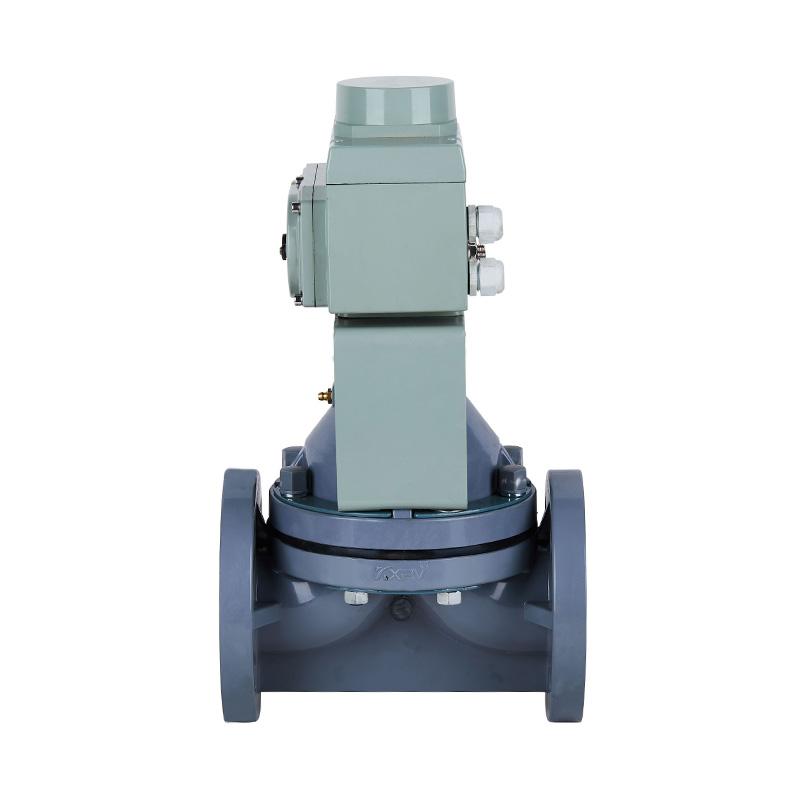

| アプリの温度制限リスト |
| 材質 | 中温℃ | 材質 | 中温℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVC-C | -20℃~95℃ | PVC-U | -5℃~45℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FRPP | -20℃~120℃ | PPH | -20℃~110℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVDF | 40℃~150℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| 製品の構造上の特徴 |
1.シールダイヤフラムはF46またはPFA製で、折り耐久性12万回以上、F4と同等の耐食性を備えています。
2.ネジ式上昇機構により、開閉トルクが小さく安定性に優れています。
3. アクチュエーターはコンピュータまたはコントロールセンターを介して遠隔制御でき、バルブの開閉によってメディアの流れと流れを制御します。これにより、柔軟性とスピードが向上し、人件費が削減され、現場作業者の安全が確保されます。

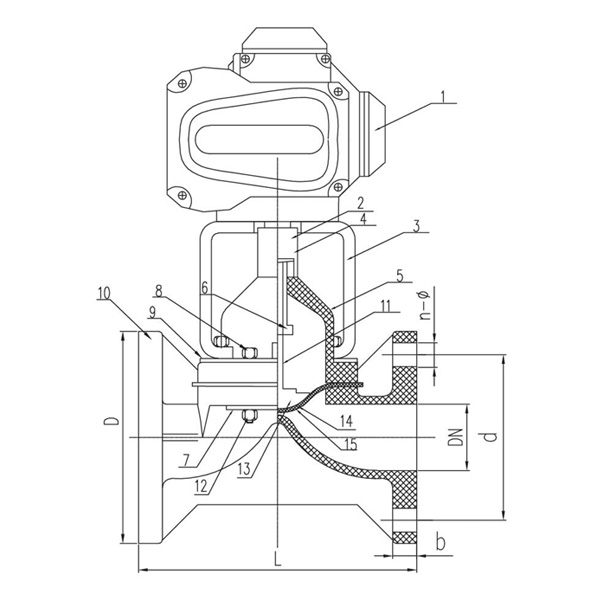

| 部品材質表 |
| いいえ。 | 名前 | 材質 | 数量 | |||||||||||||||||||||||||
| 1 | 電動アクチュエーター | アルミニウム合金 | 1 | |||||||||||||||||||||||||
| 2 | コネクティングロッド | スチール | 2 | |||||||||||||||||||||||||
| 3 | 電動/空圧アクチュエーターブラケット | 鉄 | 1 | |||||||||||||||||||||||||
| 4 | 接続ピン | スチール | 1 | |||||||||||||||||||||||||
| 5 | ボンネット | PPH、PVC-C、PVC-U、PVDF、FRPP | 1 | |||||||||||||||||||||||||
| 6 | ヨークナット | SS鋼、 銅 | 1 | |||||||||||||||||||||||||
| 7 | プラテン | Q345、SS鋼 | 2 | |||||||||||||||||||||||||
| 8 | ネジ | スチール、ステンレススチール | 4 | |||||||||||||||||||||||||
| 9 | プラテン | Q345、SS鋼 | 2 | |||||||||||||||||||||||||
| 10 | 本体 | PPH、PVC-C、PVC-U、PVDF、FRPP | 1 | |||||||||||||||||||||||||
| 11 | ステム | スチール、ステンレススチール | 1 | |||||||||||||||||||||||||
| 12 | ナットキャップ | スチール、ステンレススチール | 4 | |||||||||||||||||||||||||
| 13 | バルブプレート | PPH、PVC-C、PVC-U FRPP、PVDF/鋳鉄 | 1 | |||||||||||||||||||||||||
| 14 | フリム | EPDM、FPM | 1 | |||||||||||||||||||||||||
| 15 | ダイヤフラム | F46.PFA.PTFE | 1 | |||||||||||||||||||||||||
| 寸法リスト |
| 仕様 | D | d | L | b | n-Φ | |||||||||||||||||||||||
| 15 | 95 | 65 | 125 | 14 | 4-Φ14 | |||||||||||||||||||||||
| 20 | 105 | 75 | 135 | 18 | 4-Φ14 | |||||||||||||||||||||||
| 25 | 115 | 85 | 145 | 18 | 4-Φ14 | |||||||||||||||||||||||
| 32 | 135 | 100 | 160 | 18 | 4-Φ18 | |||||||||||||||||||||||
| 40 | 145 | 110 | 180 | 20 | 4-Φ18 | |||||||||||||||||||||||
| 50 | 160 | 125 | 210 | 22 | 4-Φ18 | |||||||||||||||||||||||
| 65 | 180 | 145 | 250 | 24 | 4-Φ18 | |||||||||||||||||||||||
| 80 | 195 | 160 | 300 | 24 | 8-Φ18 | |||||||||||||||||||||||
| 100 | 225 | 180 | 350 | 28 | 8-Φ18 | |||||||||||||||||||||||
| 125 | 245 | 210 | 400 | 30 | 8-18 | |||||||||||||||||||||||
| 150 | 280 | 240 | 455 | 30 | 8-Φ23×27 | |||||||||||||||||||||||
| 200 | 335 | 295 | 570 | 40 | 8-Φ22 | |||||||||||||||||||||||
| 250 | 390 | 350 | 680 | 38 | 12-Φ23 | |||||||||||||||||||||||
| 300 | 445 | 400 | 680 | 38 | 12-Φ23 | |||||||||||||||||||||||
